Wall-mount RGB Controller with touch panel White

Article number: 000226
Availability: In stock
Delivery time: Delivered after June 13th

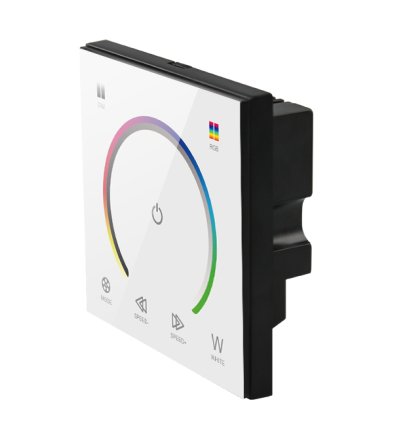

White wall touch panel dimmer for RGB LEDStrips. Thanks to the glass panel, this wall dimmer looks great in any interior, and is easy to clean. We also sell an RGBW, Dual color and Single color Touch panel in this design. Please see "related products".

This touch panel dimmer contains a few useful extra functions, which include:
- 20 Seconds delay when switching off, allowing you to leave the room.
- Possibility to save a number of presets.
- The buttons light up in the dark.

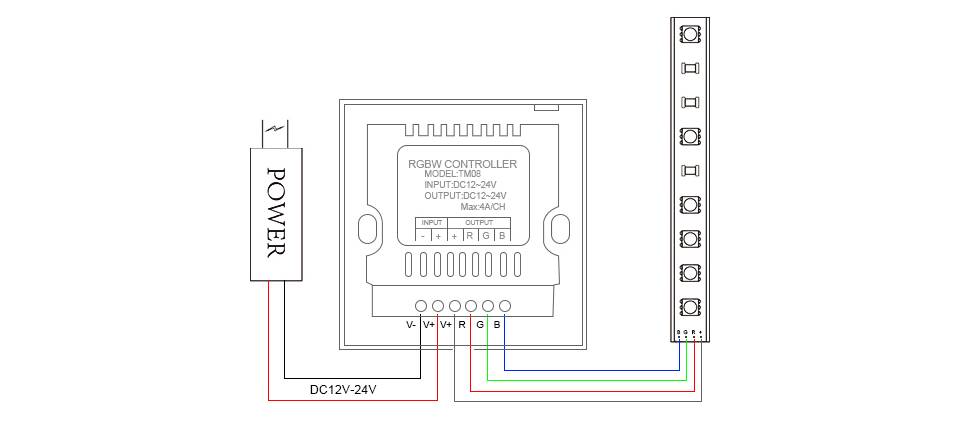

The wall dimmer is connected between the 12V / 24V power supply and the LED strip. The max. output power of this dimmer is 3x4A. This means that you cannot connect more than 144W at 12V and 288W at 24V. If you want to control more LED strip with this dimmer, please use repeaters or contact us for help.

Color: White
Easy connections.
In/output voltage: 12-24V DC
Output: 3 Channels (RGB), 3x 4A
Memory (remembers last setting when power is shut off): Yes
Connecting mode: Common Anode (+)
Rated current: 4A for each Channel (Max total power: 144 Watt @ 12V / 288 Watt @ 24V)
Working temperature: -20 to 60 Degrees Celsius (-4 to 140 degrees Fahrenheit)
Size: Length 86mm x Width 86mm x Depth 35mm

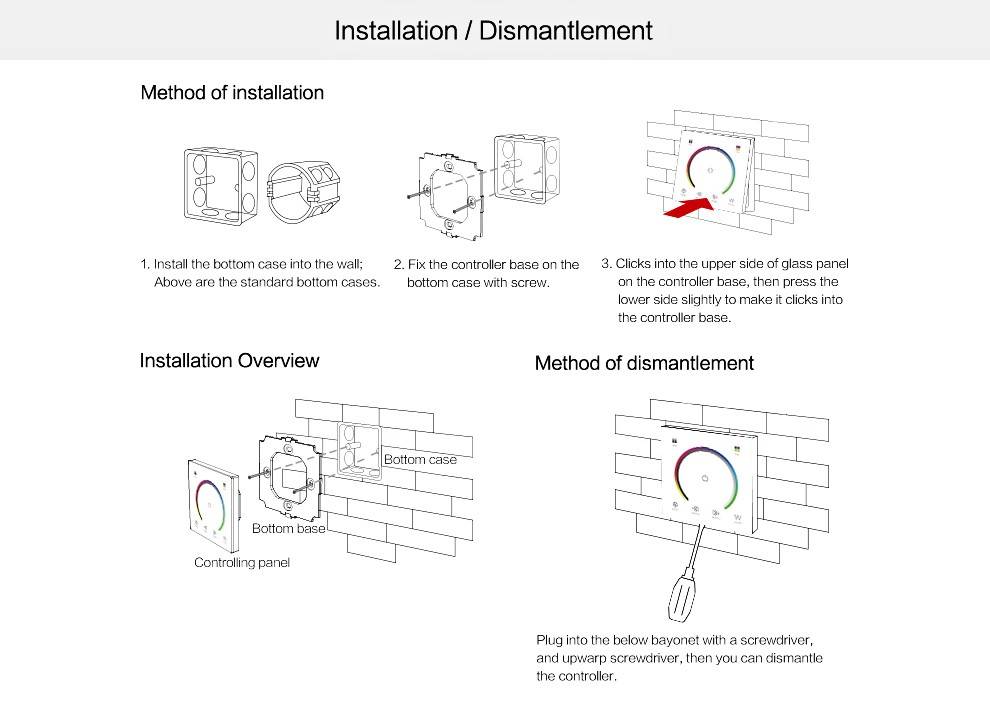

Min. size of installation hole: H66mm x W60mm
