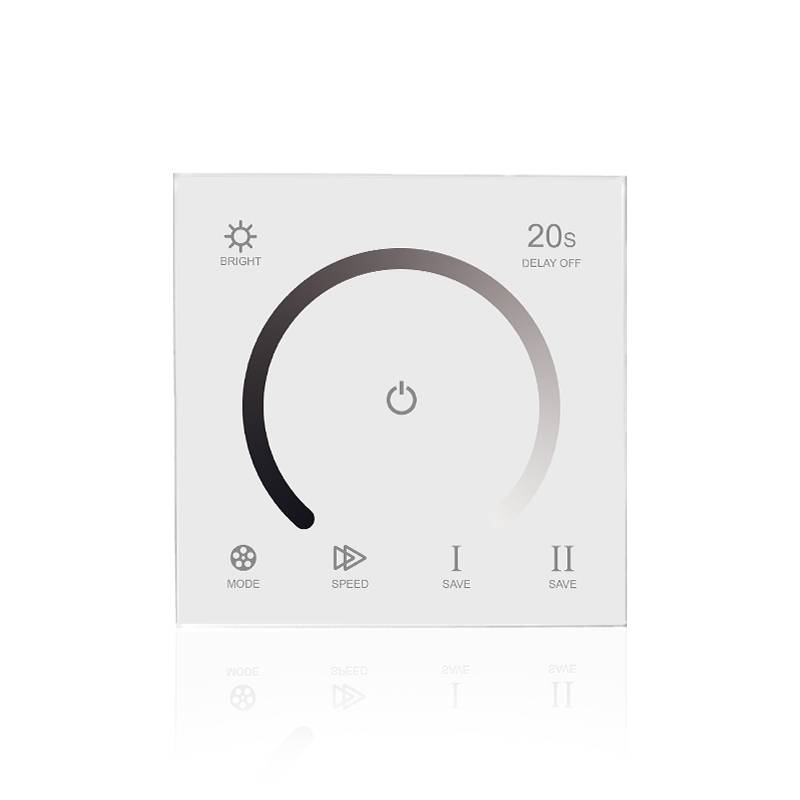

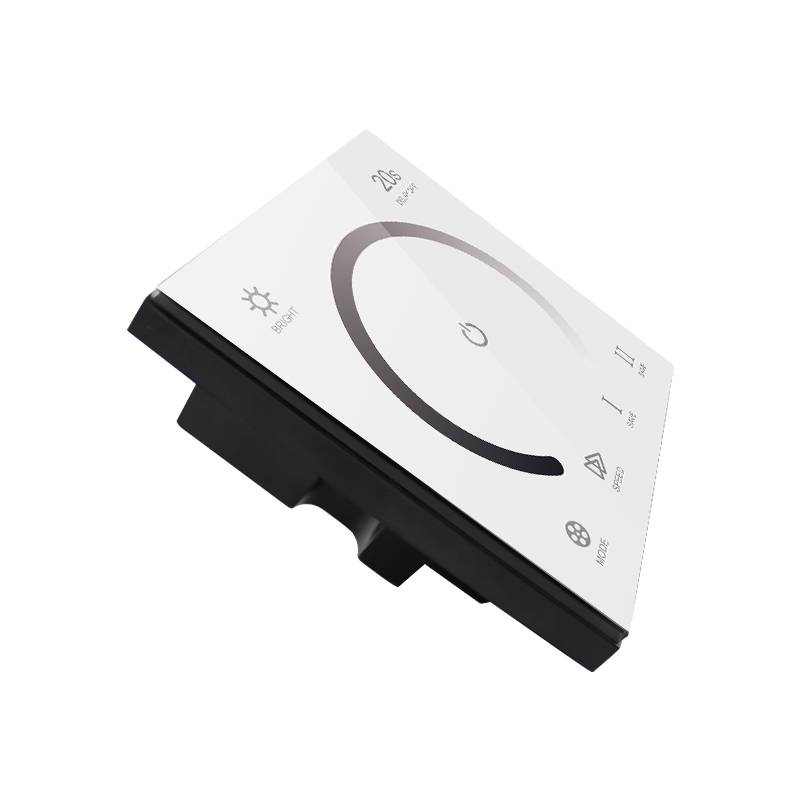

Wall-mount Single Color Controller with touch panel White

Article number: 000228
Availability: In stock
Delivery time: Delivered after July 31st

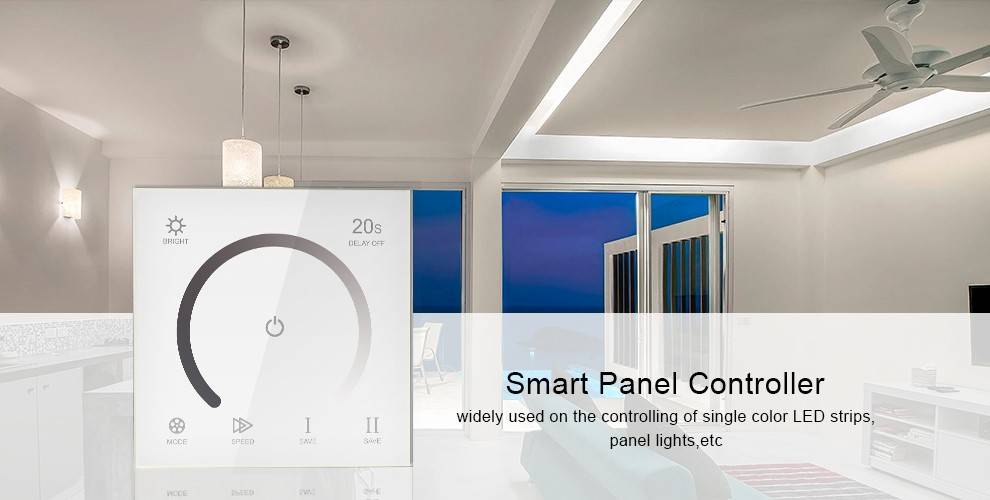

White wall touch panel dimmer for Single color LEDStrips. These are LED strips with one color, such as warm white. Thanks to the glass panel, this wall dimmer looks great in any interior, and is easy to clean. We also sell an RGBW, RGB and Dual color Touch panel in this design. Please see "related products".

This touch panel dimmer contains a few useful extra functions, which include:

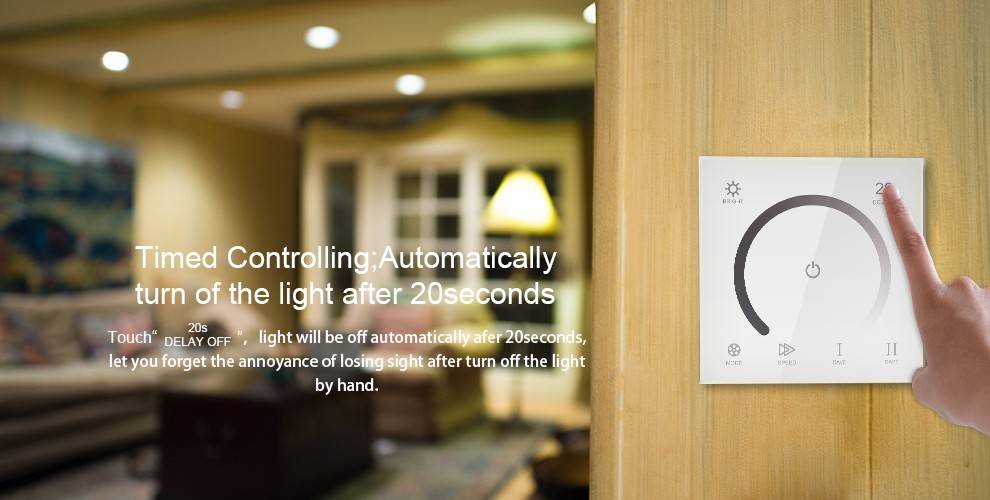

- 20 Seconds delay when switching off, allowing you to leave the room.
- Possibility to save a number of presets.

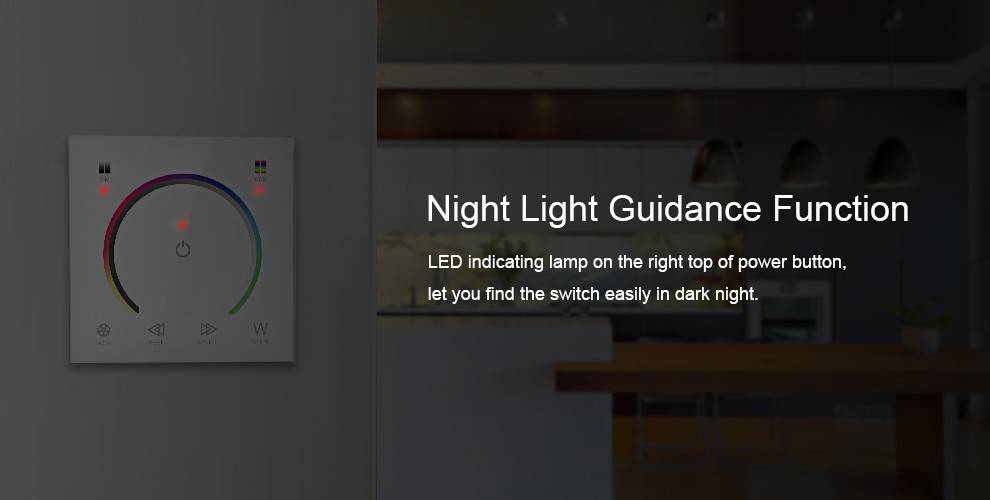

- The buttons light up in the dark.

The wall dimmer is connected between the 12V / 24V power supply and the LED strip. The max. output power of this dimmer is 1x 12A. This means that you cannot connect more than 144W at 12V and 288W at 24V. If you want to control more LED strip with this dimmer, please use repeaters or contact us for help.

Color: White
Easy connections.
In/output voltage: 12-24V DC
Output: 1 Channel, 12A Max.
Memory (remembers last setting when power is shut off): Yes
Connecting mode: Common Anode (+)
Rated current: 12A (Max total power: 144 Watt at 12V or 288 Watt at 24V)
Working temperature: -20 to 60 Degrees Celsius (-4 to 140 degrees Fahrenheit)
Size: Length 86mm x Width 86mm x Depth 35mm
Min. size of installation hole: H66mm x W60mm
