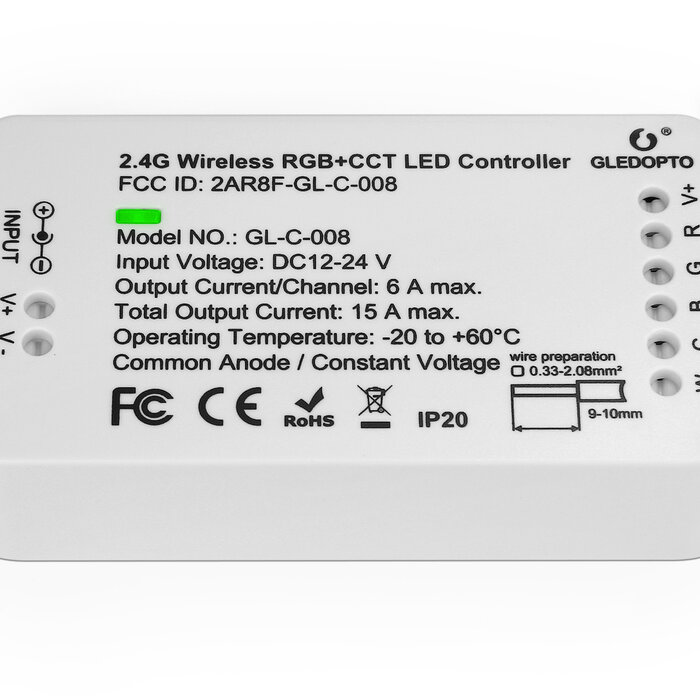

Smart-Home Zigbee Controller Gledopto GL-C-008 RGB-CCT 15A 12V-24VDC
With this versatile controller you can connect your LED strip to a large number of smart home systems. Can be directly connected with, among others, IKEA Tradfri, Philips Hue, Amazon Alexa and Echo, Osram Lightify, or another home automation system that supports Zigbee Light Link (ZLL).
This controller exists in the following versions:
RGB + CCT 5 channel: The controller is recognized as one lamp. A color from the color spectrum or a white tint can then be selected.
RGBW 4 channels: This controller is seen by the app as 2 lights: 1 for the R, G, B channel and 1 for the white channel.
RGB 3 channel: this controller is intended for RGB LED strips without extra white and / or warm white channel.
WW / CW or CCT 2 channel: This controller is suitable for two-color LED strip, these are LED strips with both white and warm white LED strips where you can adjust the color temperature yourself.
Single color 1 channel: This controller is suitable for single color LED strip, for example (warm) white, blue, red, or green.
The controller is connected between the 12V / 24V power supply and the LED strip. The max. output power of this dimmer is 15A. This means that you cannot connect more than 180W at 12V and 360W at 24V. If you want to control more LED strip with this dimmer, please use repeaters or contact us for help.
In/output voltage: 12-24V DC
Output: 5 Channel, total power rating 15A Max.
Memory (remembers last setting when power is shut off): Yes
Connecting mode: Common Anode (+)
Rated current: 15A (Max total power: 180 Watt at 12V or 360 Watt at 24V)
Working temperature: -20 to 60 Degrees Celsius (-4 to 140 degrees Fahrenheit)
Size: 4,80 x 8,90 x 2,35 cm
