Staircase lighting LED Strip Kit

Article number: ww-3528-60-ip20-staircase-5m
Delivery time: Delivered after July 31st

LED Strips are very suitable for staircase lighting. With very little effort, you can create a great light effect for your stairs. It is possible to place an LED strip lengthwise along the steps or behind the banister. It is also possible to divide the LED strip into short pieces, e.g. 50cm, and place them under each step. There is also the option to place the LED strips in an aluminum profile with a matt cover strip, motion sensors can be used so that the lighting switches on when there is movement, and it is possible to have the LED Strips soldered by us.

Put together your own LED strip stair lighting set on this product page. The basic set consists of the following:

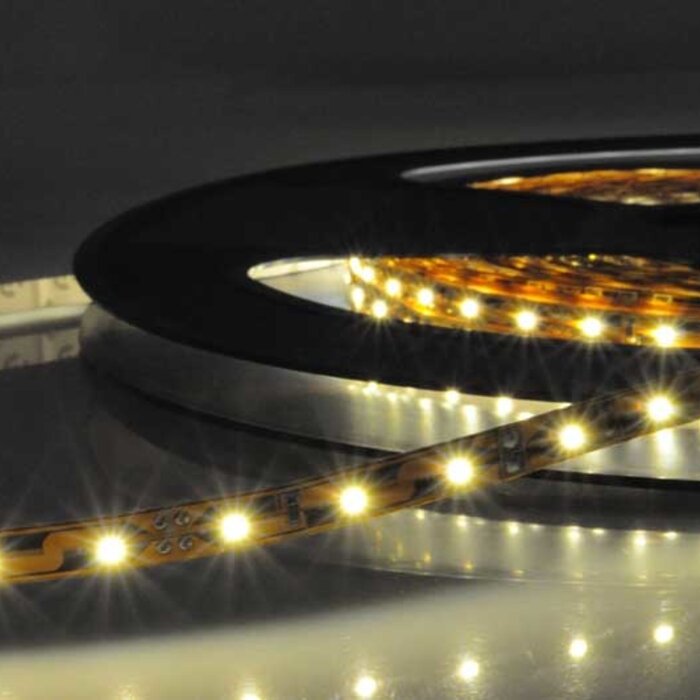

1 roll of 5 meters LED strip Warm White 3000K 3528 60 LED/m non-waterproof 24 Volt
1 power adapter Meanwell LPV-35-24
5 meters 2 core connecting wire
1 screw terminal block strip 12 pole

The additional options that can be selected are:
1 or 2 motion sensors. If you want more motion detectors, for example to have each step respond to movement independently, so that the lighting moves with the person walking over the stairs, you can order these separately. Look at the bottom of the page under "related products".
More LED strip. The standard quantity in this set is 5 meters of LED strip. However, you can also choose 5.5 meters, 6 meters, and so on, up to a maximum of 10 meters.
Soldering work. Standard, the LED Strip is supplied on a roll of 5 meters. This can be divided by the customer into smaller pieces for each stair step, and wired by soldering. We can also do this for you for a surcharge of €3.00 per step. Please also indicate in the comments how long each LED strip should be. We will then deliver the LED strip in the desired lengths and attach connection wires. Note: The customer still needs to connect the connecting wires from each step to the wire to the power supply and/or motion sensor.

Accessories that we recommend ordering separately:
Aluminum profiles, see the category page "Accessories > Aluminum LED Strip Profiles". Here you can choose the desired profile. Soldering tools, see the category page "Accessories > Soldering service". Wire and connection material, we supply 5 meters of wire with this set as standard, but if you are looking for more connection material you can find this on the page "Accessories > Cables".

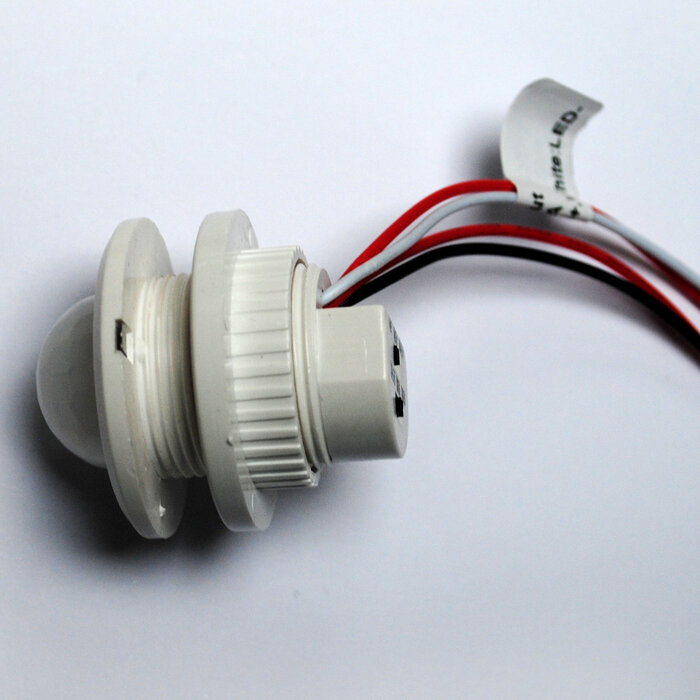

Motion sensor:
Dimensions: ⌀40mm x 45mm
Range: 4-6 meters

LED strip Wattage: 4.8W per meter
Power consumption: 0.2A per meter
Voltage: 24V
Waterproof: No (IP20)
Shockproof: No
LED type: 3528
Light color: Warm White 3000K

Brand: Meanwell
Series type: LPV
Waterproof: Yes, IP67
Voltage: 24VDC
