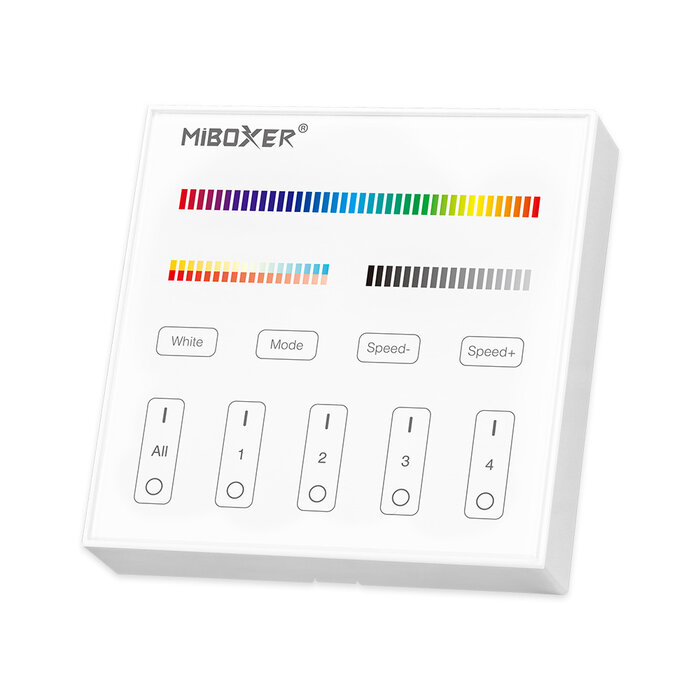

Miboxer B4 RGBWA 4 Zone Wireless Wall Remote - Battery Operated

Article number: B4
Availability: In stock
Delivery time: Delivered after July 31st

Mi-Light 2.4 GHz B4 4-zone Wall Panel RGBWA

You can connect an infinite number of lamps, LED strips or downlights, and LED strip controllers with the wireless B4 wall panel from Miboxer. You have access to max. 4 separate groups or "zones" in which you can control the LED lighting. This wall panel operates on batteries (2xAAA) and is therefore completely wireless.

For example, you can connect the LED strips per room to one zone and then control them with the wall panel. You can control the color and color temperature, as well as the brightness and saturation.

Suitable for Mi-Light / Miboxer products and RGBWA LED strips

The B4 4-zone wall panel is suitable for special Miboxer products such as LED lamps, spots, downlights, and spotlights, but also for RGBCCT LED strips (in combination with a Miboxer RGBCCT LED Strip controller).

Extensive features

The wireless B4 panel from Miboxer offers the possibility to turn lamps on or off, but can of course do much more. You can dim the connected lighting, set your favorite color using the color wheel, or use the "mode" function. With this button, you can choose from 9 different programs that provide impressive light effects. You can play them faster or slower via the "S" button.

Stylish appearance

The compact wall panel from Miboxer has a modern design, thanks in part to the scratch-resistant glass panel. This not only provides an elegant look but also protects the product from scratches and makes it extra durable.

Instruction manual

Installation of the wall panel:

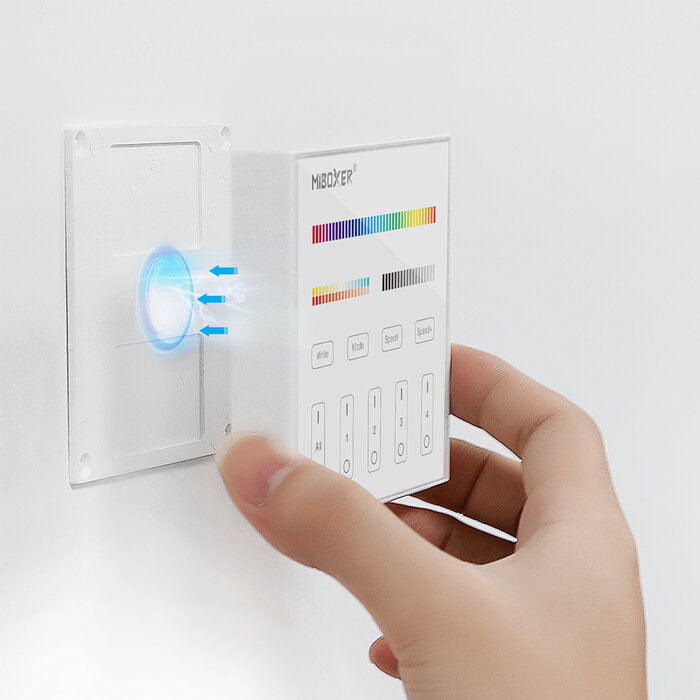

First, install the wall panel in a central location in the house. The 2.4 GHz radio frequency (RF) is used, which provides a range of up to 30 meters. Therefore, place the panel in a location where the range is greatest throughout the house. Attach the back with the supplied screws or double-sided tape. Then insert the front panel.

Connecting the LED strips:
To control LED strips, you always need a controller. Connect your LED strips to a Miboxer controller and connect it to the power supply, which is then plugged into the socket.

Pairing the LED strips with the Miboxer wall panel:
With a Miboxer controller, you can wirelessly connect the LED strips to the wall panel. All you have to do is unplug and plug back in the transformer plug to which your LED strips are connected. Once the transformer plug is plugged into the socket, the controller searches for a signal. You now have three seconds to tap the desired zone on the wall panel. Press the hyphen or "zone on" button for this. After that, the LED strip will flash, indicating that the pairing was successful. From that moment on, you can control the lighting with the panel.

Product specifications:

Product name: 4-Zone RGBWA Smart Panel.
Type: B4
Brand: Miboxer
Suitable for all Mi-Light / Miboxer products and RGBCCT / RGBWA LED strips (in combination with a Miboxer controller).
Controls color, color temperature, saturation, and brightness.
Works via 2.4 GHz (RF) with a range of up to 30 meters.
Compact, stylish, and durable.
Easy to use.
Includes mounting material (screws, double-sided tape).
Input voltage: 2xAAA battery.
Standby power: 20uA.
Operating temperature: -20 -60 ℃.
Transmission power: 6dBm.
Modulation method: GFSK.
Color: White.
Product dimensions: 86mm x 86mm x 16mm.
Includes manual.
