Flexible LED Strip sold per 50cm. The LED Strip is delivered in one piece up to 5 meters. Example: If you put 3x 50cm of LED strip in your shopping cart, you will receive one 1.5 meter LED Strip. However, if you put 16x 50cm of LED Strip in your shopping cart, it is delivered as 1x5m and 1x3m. Etc.
You can solder multiple lengths together to create one long LED Strip.
Choose your voltage (optional): We can supply this LED strip in 12 Volts (default) or 24 Volts. See "voltage" above.

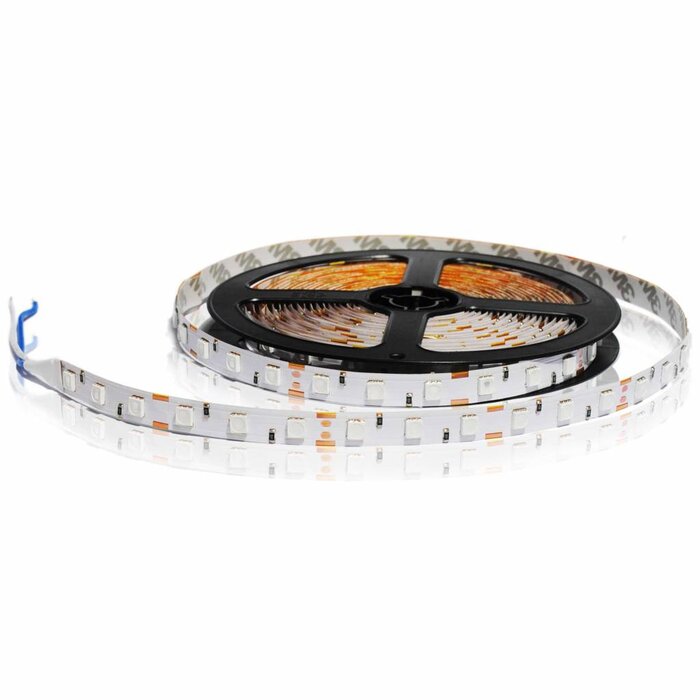

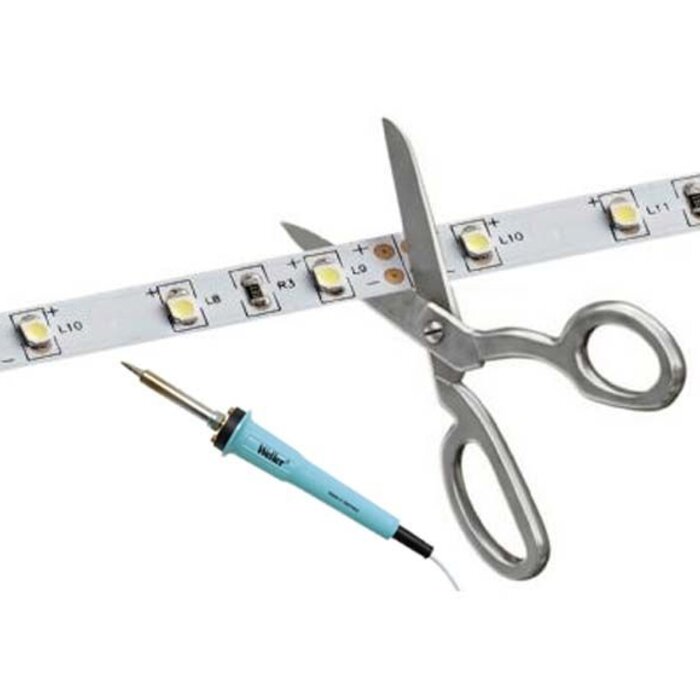

Flexible LED-strip with adhesive for easy mounting. This strip is very easy to install. You can cut the strip every 5 cm (12V) / 10 cm (24V) to create any size you need. Moreover, this LED-strip is extremely flexible and very narrow corners can be made with it. The power is supplied through the soldering points which can be found on the strip every 5 cm (12V) / 10 cm (24V).
Applications: Infrared LED Strip can be used for certain special applications, for example object detection and night vision. This Infrared LED strip uses LEDs with a wavelength of 850nm. However, we can also supply this LED strip with other wavelengths. For example: 740nm, 940nm. If you need any special kind of infrared LED strip, please contact us!
This LED Strip works on 12 Volts / 24 Volts, so to connect it to a 110-230V power outlet you will need a power supply. Please see the category Accessories -> Power Supplies for this. The more LED strip you want to connect, the higher the power consumption will be and therefore the bigger the power supply must be. Look below for an indication of which power supply to use with this LED strip:
10cm - 50cm: Power Supply 12 Watt
50cm - 1.5 meters: Power Supply 36 Watt
1.5 meters - 3 meters: Power Supply 60 Watt
3 meters - 4.5 meters: Power Supply 84 Watt
4.5 meters - 6 meters: Power Supply 120 Watt
6 meters - 10 meters: Power supply 200 Watt
10 meters - 20 meters: Power Supply 400 Watt
More than 20 meters: Use multiple power supplies or contact us for advice and price.
Note: If you want to connect more than 20 meters to a power supply, make sure that there is a direct connection to the power supply at least every 20 meters, to avoid loss of current in the LED Strip.
This LED Strip can be dimmed in combination with an LED Dimmer.

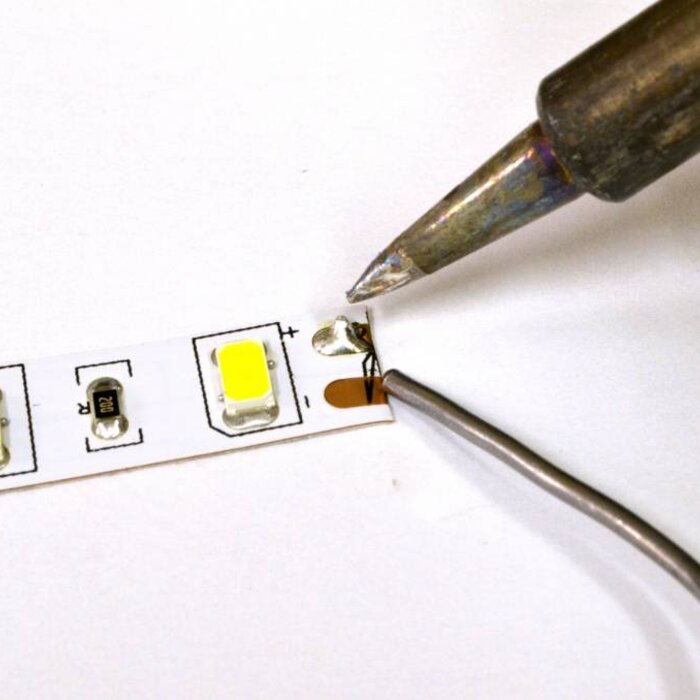

Remark: Delivered with a connector which can be plugged into the power supply. This connector needs to be soldered onto the LED strip. If you do not know how to solder: no problem, we can do this for you. Add "soldering service for flexible LED Strips" to your shopping cart and we will do all the necessary soldering for you. Look under "Service & Accessories" or scroll to the bottom of this page.
For more information on how to connect LED Strips, please see our manual.
This product is in stock in large quantities. If you are searching for LED strips with specific requirements, please contact [email protected] for info and prices. We can supply custom LED Strips of almost any type.
Luminous flux: 400 lumen per meter.
Color: Infrared (IR), 850nm
Voltage: 12V / 24V
Amperage: 1.2 A / meter (12V) / 0.6 A / meter (24V)
Power: 14.4 W / meter
Can be cut every 3 LEDs (12V) / 6 LEDs (24V)
Strip width: 10mm
Strip height: 2mm
LEDs per meter: 120
LED Type: 2538
