Flexible LED Neon Flex sold per 50cm. The LED Neon is delivered in one piece up to 20 meters long. Example: If you put 3x 50cm of LED Neon in your shopping cart, you will receive one 1.5 meter LED Neon. However, if you put 50x 50cm of LED Strip in your shopping cart, it is delivered as 1x20m and 1x5m. Etc.
You can cut and re-solder the LED Neon in any combination that you want. The cut unit of this LED neon is 10cm (6 LEDs)
Choose your voltage (optional): We can supply this LED Neon in 24 Volts only.

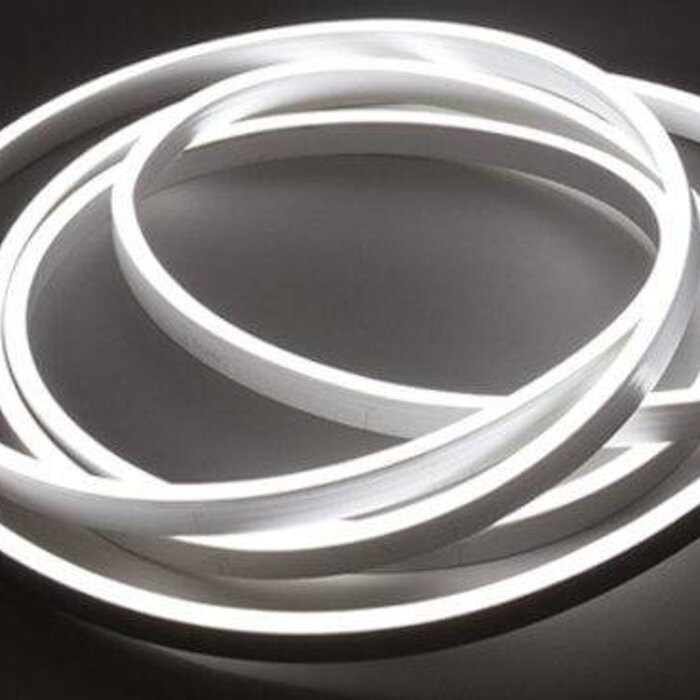

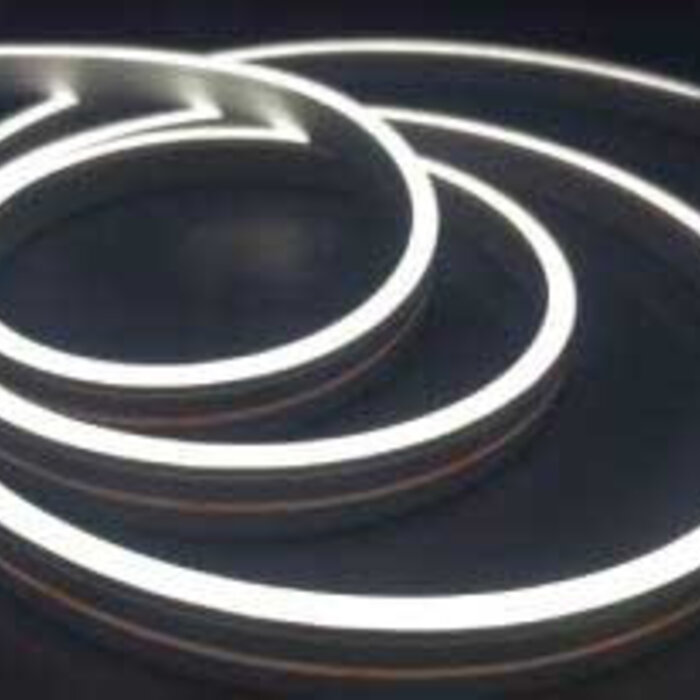

LED Neon Flex is very flexible and suitable for applications where a LED Line needs to be placed in plain sight and when you want to create curves, such as a light-line in the floor, in a wall, or for example in signage! The light is completely diffuse thanks to the opaque potting, which means that the individual LED dots are not visible and LED Neon can be placed in direct sight.

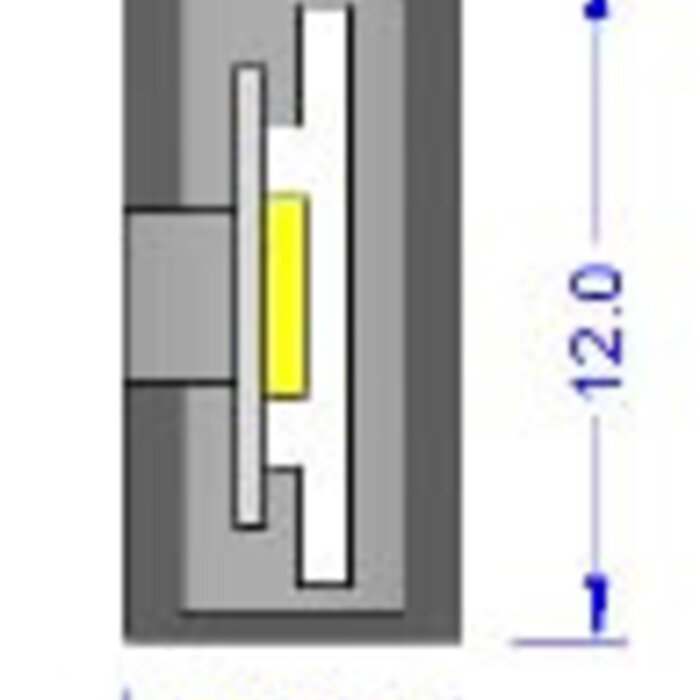

LED Neon flex is made up of a very flexible silicone U-shape profile with a regular LED strip in side. The profile is filled with opaque potting. Neon Flex can be cut every 10cm, and the power is supplied via the soldering points which can be found on the LED strip inside.
Applications: Signage, route-marking, stairs, light lines in garden, restaurant or in the home.
Voltage: 24V. Our LED Neon flex works according to the same principle as our normal LED strip, and therefore can be used with all our power supplies and controllers.
This Warm White LED Neon can be dimmed using a normal LED strip Dimmer. You can find these dimmers in the category Accessories -> Dimmers for LED Strip. It works on 24 Volts, so to connect it to a 110-230V power outlet you will also need a power supply. Please see the category Accessories - Power Supplies for this. The more LED Neon you want to connect, the higher the power consumption will be and therefore the bigger the power supply must be. Look below for an indication of which power supply to use with this LED strip:
10cm - 2 meters: Power Supply 36 Watt
2 meters - 3.3 meters: Power Supply 60 Watt
3.3 meters - 4.6 meters: Power Supply 84 Watt
4.6 meters - 6.6 meters: Power Supply 120 Watt
6.6 meters - 11 meters: Power supply 200 Watt
11 meters - 22 meters: Power Supply 400 Watt
More than 22 meters: Use multiple power supplies
Note: Connecting one single length of more than 14 meters is not possible, due to loss of current inside the LED strip. For lengths longer than 14 meters, the strip should be split up and powered separately. Also please pay attention to the maximum current of your LED Strip dimmer, if you are using one. Usually this is around 144 Watts. To connect more than 144 Watts of LED Strip to it, you may need to use Amplifiers. Please do not hesitate to contact us for advice!
Soldering: A connector or cable needs to be soldered onto the LED strip inside the LED Neon flex tube. If you do not know how to solder: no problem, we can do this for you. Add "soldering service for flexible LED Strips" to your shopping cart and we will do all the necessary soldering for you. Look under Accessories -> Service or scroll to the bottom of this page.
Cutting and mounting: This LED Neon Flex can be cut to size every 5cm. After the LED Neon is cut, the ends need to be made waterproof again. You can do this using end caps and silicone glue, sold separately. We also sell mounting clips separately. Please see Related products or Accessories -> Accessories for IP68 LED Strip.
For more information on how to connect LED Strips, please see our manual.
If you are searching for LED Neon with specific requirements, please contact [email protected] for info and prices. We can supply custom LED Neon of almost any type.
Luminous flux: Max. 800 lumen per meter.
LED Color: White 6000K
LED Type: 3014 SMD
Number of LEDs per meter: 120
Voltage: 24 Volts
Amperage: 0,5 A / meter
Power: 12.0 W / meter
Can be cut after every 6 LEDs (5cm)
Waterproof: Yes, IP67
