DMX RGB Decoder / Interface

€39,95
Article number: 000089-3ch
Availability: In stock
Delivery time: Shipped within 24 hours

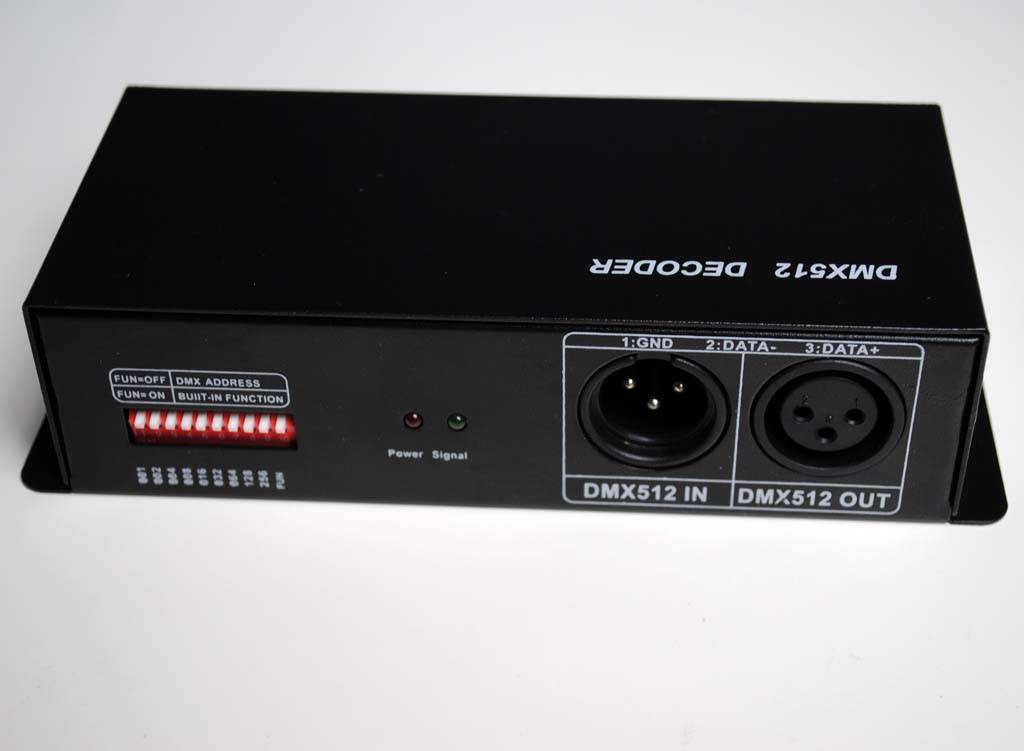

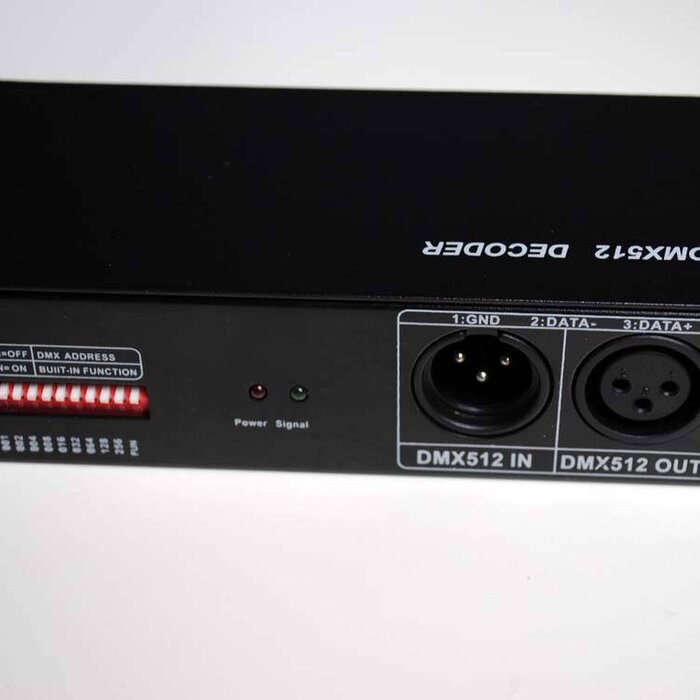

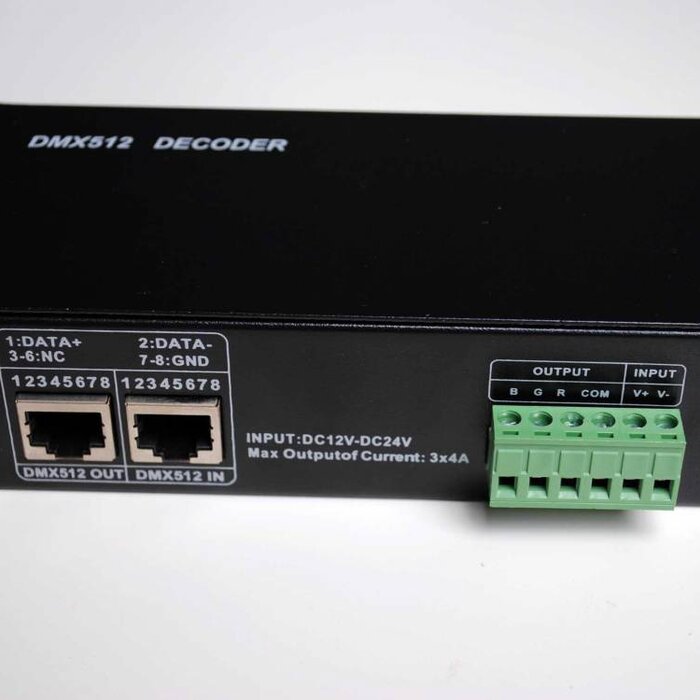

You can use this DMX interface / decoder to connect one or more RGB LED Strips to your DMX installation. You can use both RJ-45 and 3-Pin XLR for the DMX in and out.

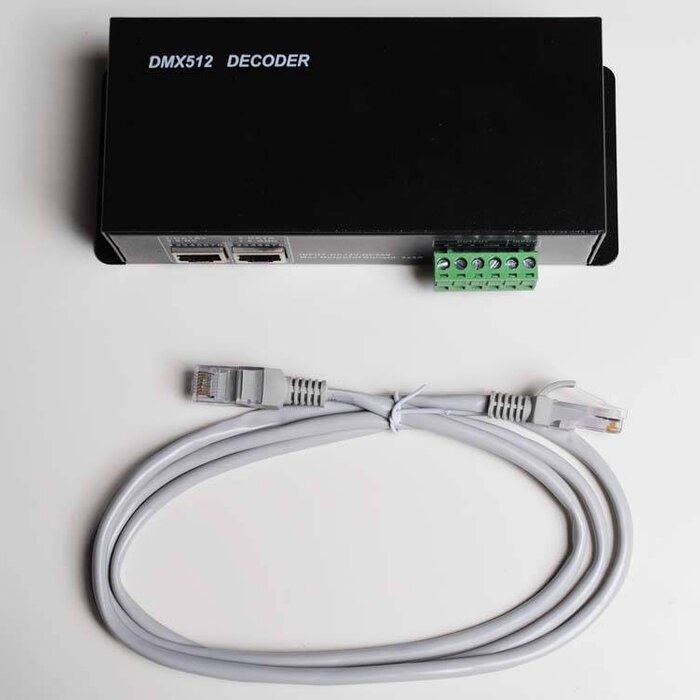

Including RJ-45 cable.

Specifications:
Input / output voltage for the RGB LED Strip: DC 12-24V
Max. current: 4A per R,G,B channel. Total 144W bij 12V. Totaal 288W bij 24V.
Output type: 3x CMOS Drain
RGB-mode: Common anode (+)
Size:
164mm x 65mm x 40mm
Min/max temp.: -20 ~ +60 graden Celsius.

Bram Huisman 10-09-2014 15:17

Goed, doet wat hij moet doen

5 stars based on 1 reviews
