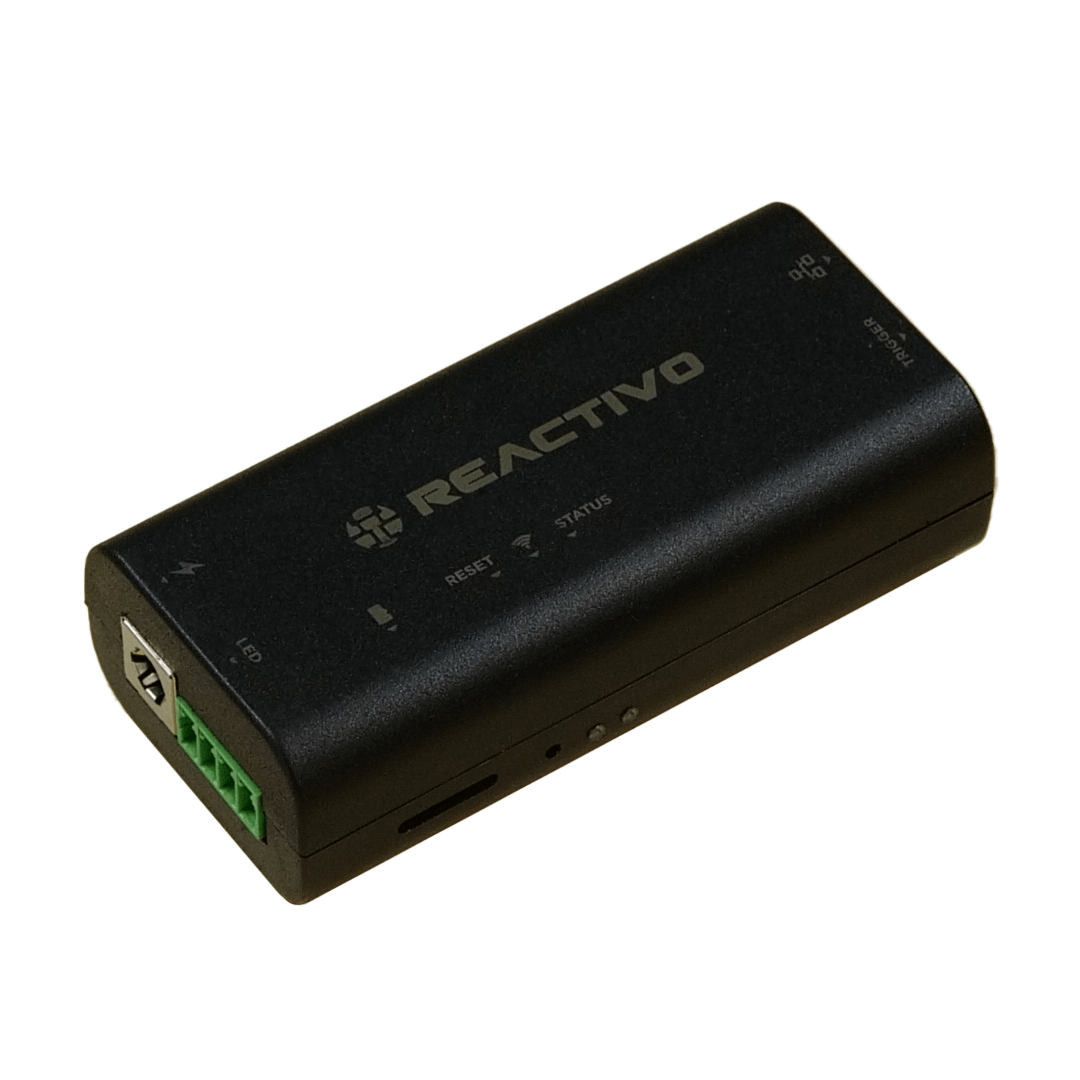

Digital LED strip controller with editor software and app

Article number: reactivo2
Availability: In stock
Delivery time: Delivered after July 31st

Controller for Digital LED strips / LED Pixels. Including software and app with which the controller can be operated via your phone. You can create your own light programs or, for example, project video for an LED screen.

Multiple controllers can be linked together, so in principle you can control an infinite amount of Digital LED Strip / Pixels.

Control of max. 1024 digital RGB LED pixels, or 768 RGBW LEDs per controller.

Specifications:
Weight: 44 g
Dimensions: 85 x 40 x 25 mm
Maximum of LEDs: 1024
SPI LED Outputs: 1
Maximum of LEDs per Output: 1024
Required power: 5-24V/ 0.3A (PCB only, wihout the LED strips / LED pixels)
Maximal current: 5A
Power connector: pluggable terminal block with 5 mm contact spacing e.g. SH04-5-GY
SPI OUT connector: pluggable terminal block with 5 mm contact spacing e.g. SH04-5-GY
Ethernet: 1x RJ-45 connector, internal switch, 100 Mbit/sec
SD Card: Micro SD Card (FAT32, up to 32GB)
Size: 1024-pixels (6 Art-net universes)
Warranty: 5 years

Supported ICs, amongst others: TM1809, WS2811, WS2812, APA102, APA102_DOUBLE, APA102 16bit, D705, LPD6803, LPD8806, MBI6120, SM16716, SM16726.
