RGB Controller with IR Remote

Article number: 000088
Availability: In stock (197)
Delivery time: Shipped within 1 business day

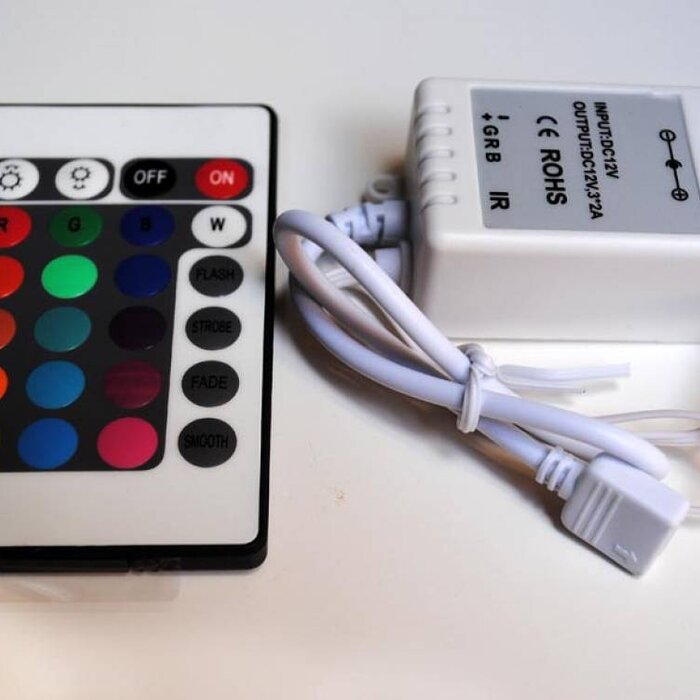

RGB Controller for RGB LED Strips.

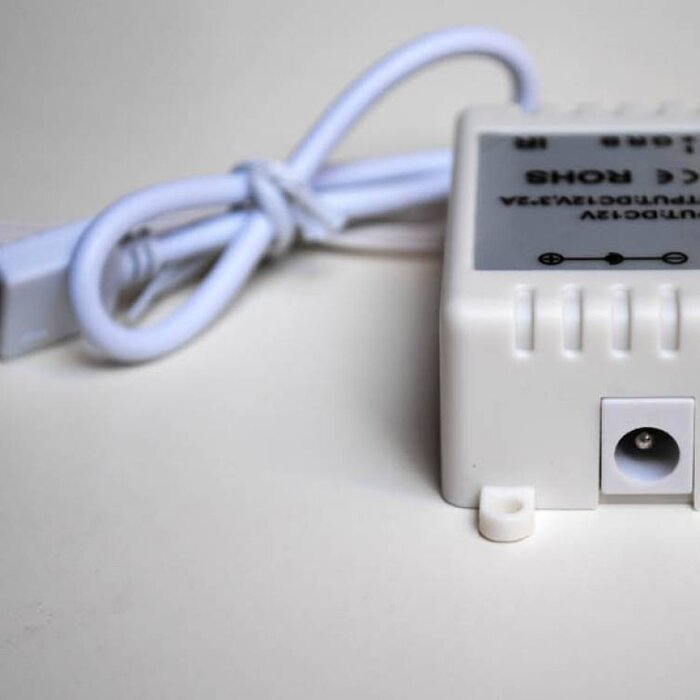

This controller is needed to drive our flexible RGB LED strip. The four wires from the RGB strip need to be connected to this device. On the other side of the device you plug in the 12V power supply.

All necessary cable are supplied with the controller.

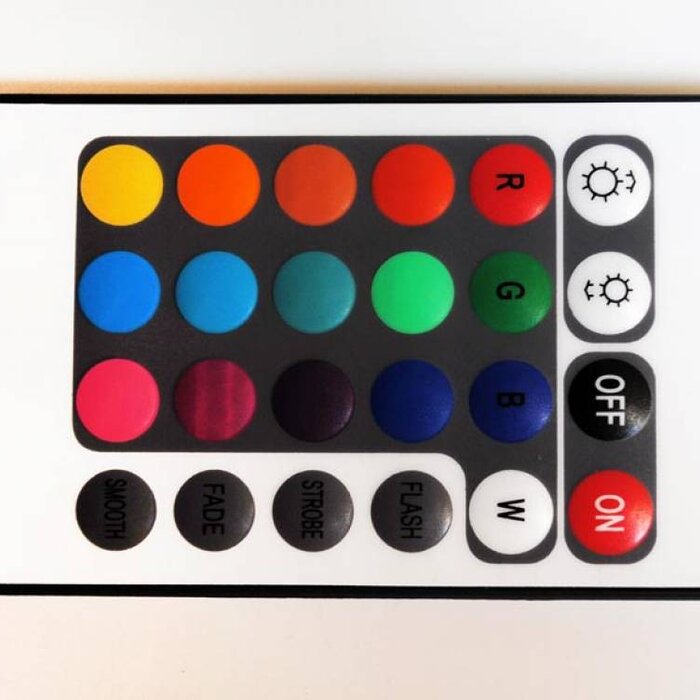

Complete with remote control and batteries for the remote control.

Functions: Fixed colour, smooth automatically changing colour, flashy automatically changing colors. This controller also has a dimmer function.

Specifications:

Easy connections.
In/output voltage: 12V DC
Memory (remembers last setting when power is shut off): Yes
Output: Three CMOS output
Connecting mode: Common Anode
Rated current: 2A for each Channel   (In total, you can connect max. 72W of RGB LED Strip)
Dimensions: 50mm x 35mm x 22mm
Working temperature: -20 to 60 Degrees Celsius (-4 to 140 degrees Fahrenheit)

Christopher Gull 21-01-2013 01:44

Really good RGB controller and remote for its price! However, beware that settings are quite limited, such as the timing for colour change, which I think is too fast even at slowest speed. I tested how long it would take for one primary colour to change to another, and it was under 30 seconds. I prefer about 2 minutes between colour changes. Also, the automatic colour changing isn't stepless, which causes flickering while some colours are changing. The good points are that the controller "box" is very small, that it has a wire that lets you mount the IR receiver further away from the controller (it allows you to mount the box out of sight, and only have the receiver visible), and that the remote control is flat and small, which makes it easy to make a small homemade holder on the wall where you can put the remote control (remote control also works well even when you don't point it at the receiver).

4 stars based on 1 reviews
