RGB-CCT Controller with 4-zone Remote Control

Using the 4-zone remote control you can control max. 4 separate RGB-CCT Controllers. Therefore, each zone requires a separate RGB-CCT Controller. Extra RGB Controllers need to be ordered separately.

This is a very versatile RGB-CCT Controller for professional or home use. With just one remote you have total control over your RGB-CCT LED Strip lighting. You can control any of the 4 zones separately.

You can connect max. 120W (12V) / 240W (24V) of LED strip to this RGB-CCT Controller. On each LED strip page, you can find the power use per meter, and calculate how many meters you can connect to this RGB-CCT Controller.

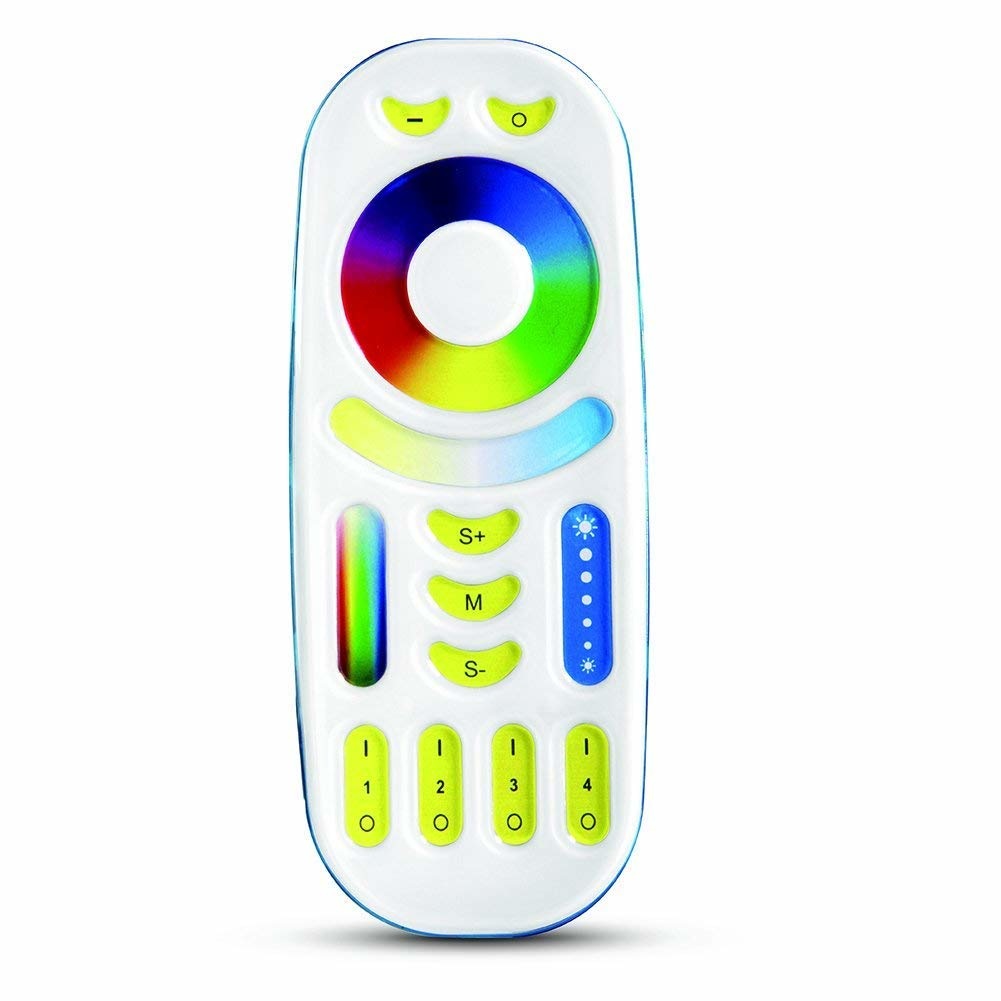

Remote functions:
Choose any of the 4 zones. After a zone is selected, you can dim, change the color, set automatic changing colors, and switch on/off.

Specifications:
Voltage input/output: 12V / 24V
Max. Power: 120W (12V) / 240W (24V)
Max. Current: 6A per channel (10A total for all channels combined)
No. of channels: 5 (R,G,B,WW, CW)
Type of remote: RF
  *Controller can be placed out of sight
Remote range: Max. 40 meters in open space
Remote size: 56x26x113mm
Controller size: 52x27x95mm

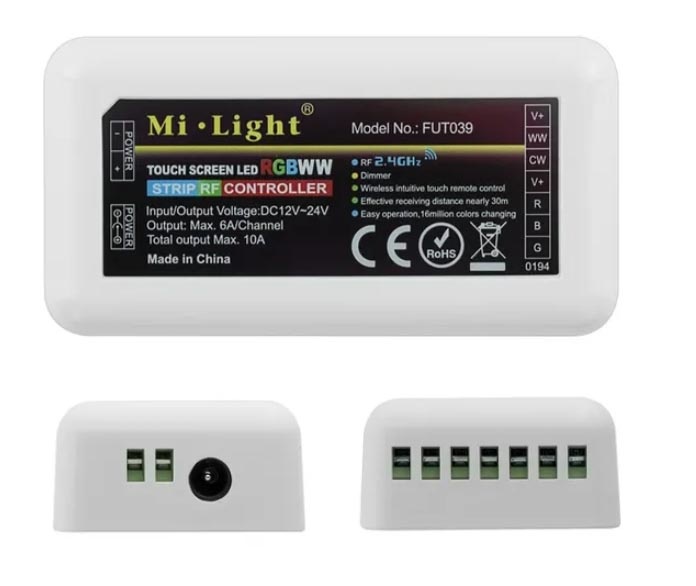

Type: FUT039  /  FUT092
