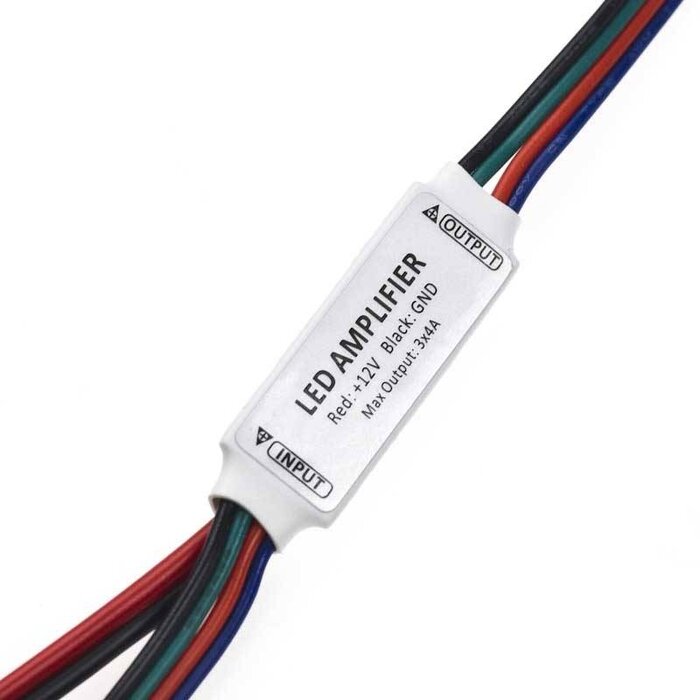

Mini RGB Amplifier
||Shipped within 1 business day
If you want to control a large amount of LED lighting with only one controller, this signal amplifier can be used to amplify the signal from the controller. Can be used with both RGB and single color controllers / dimmers.Installation:
Connect the output from the RGB controller to the input of this signal amplifier. Connect a power supply to the amplifier, and connect max 72 Watts of LED lighting to the output of the amplifier.Specifications:
In/output voltage: 12V-24V DC
Output: 4 Pin RGB
Rated current: 2A for each Channel. Connect all three channels together for single color lighting, max current 6A.
Max. Power: 72 Watt.
Working temperature: -20 to 60 Degrees Celsius (-4 to 140 degrees Fahrenheit)
