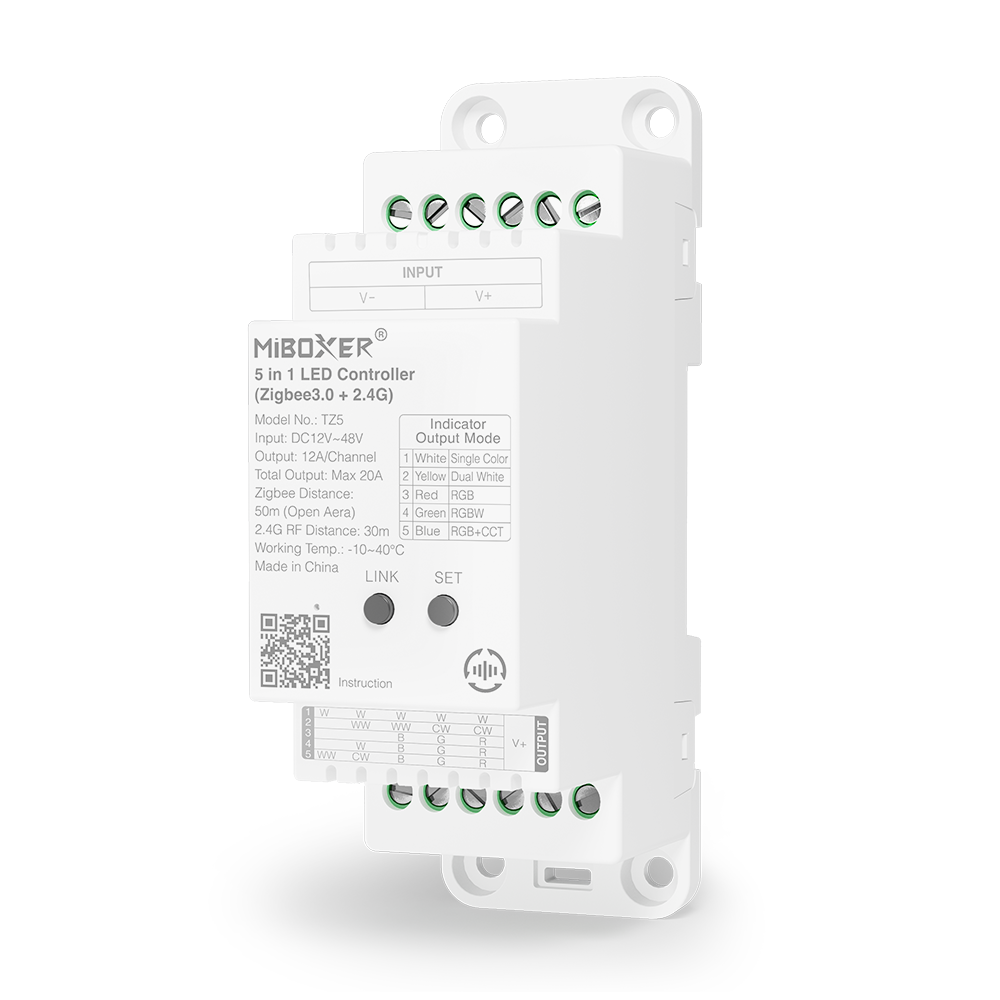

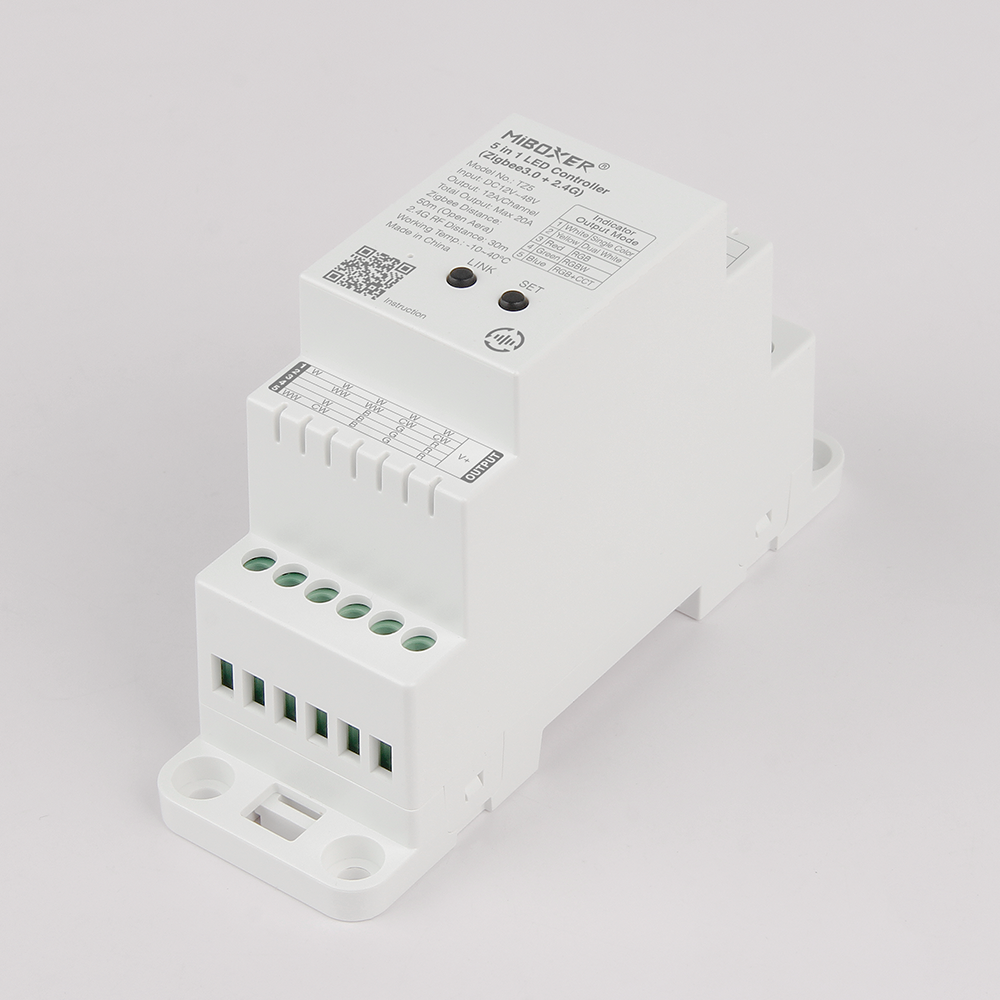

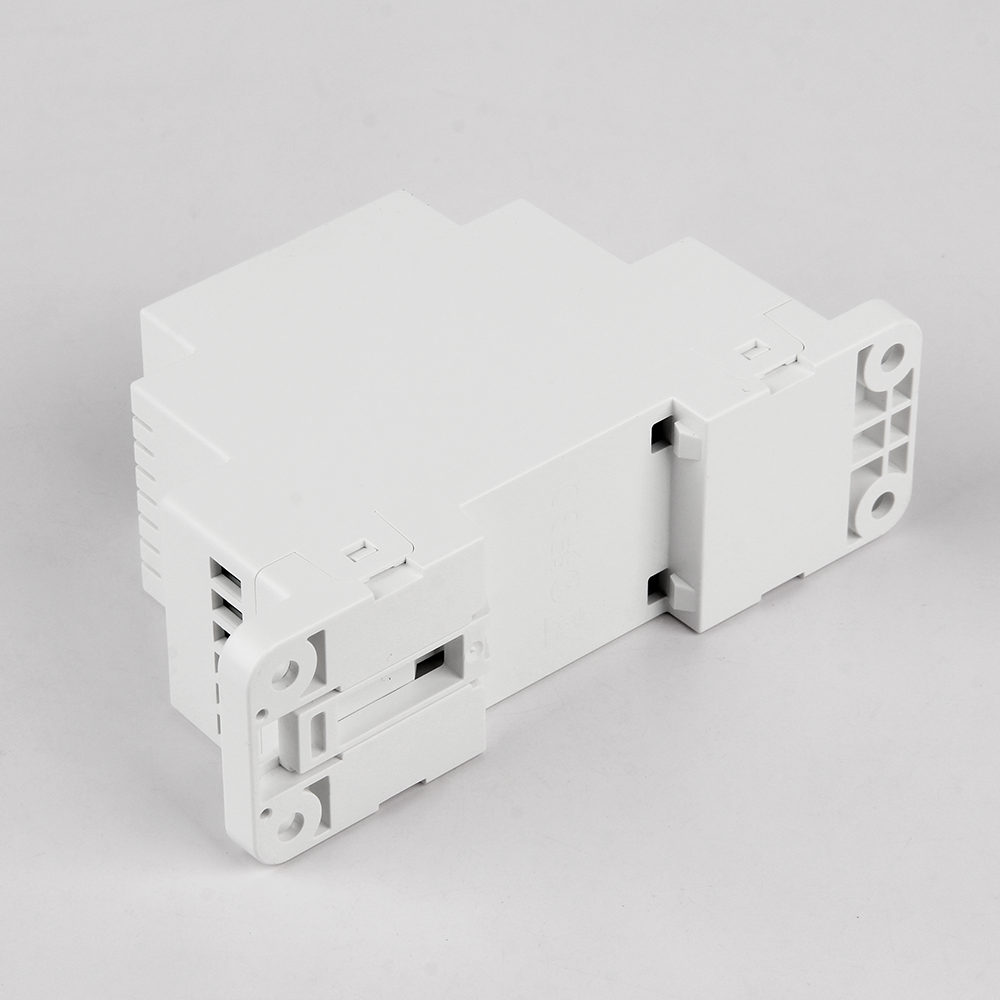

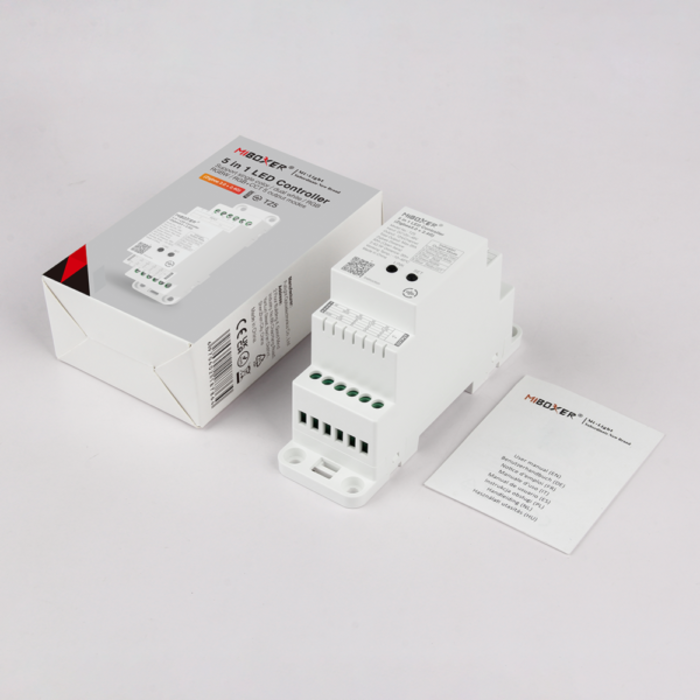

MiboxerTZ5 DIN rail Zigbee 3.0 LED controller 5-in-1 (RGB, RGBW, RGB+CCT, CCT, single color) 12–48V – compatible with Tuya, Alexa & Google

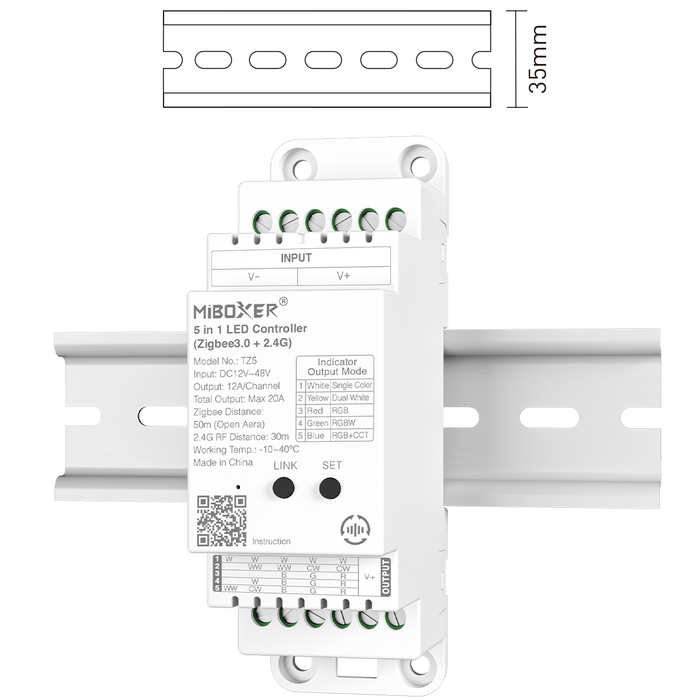

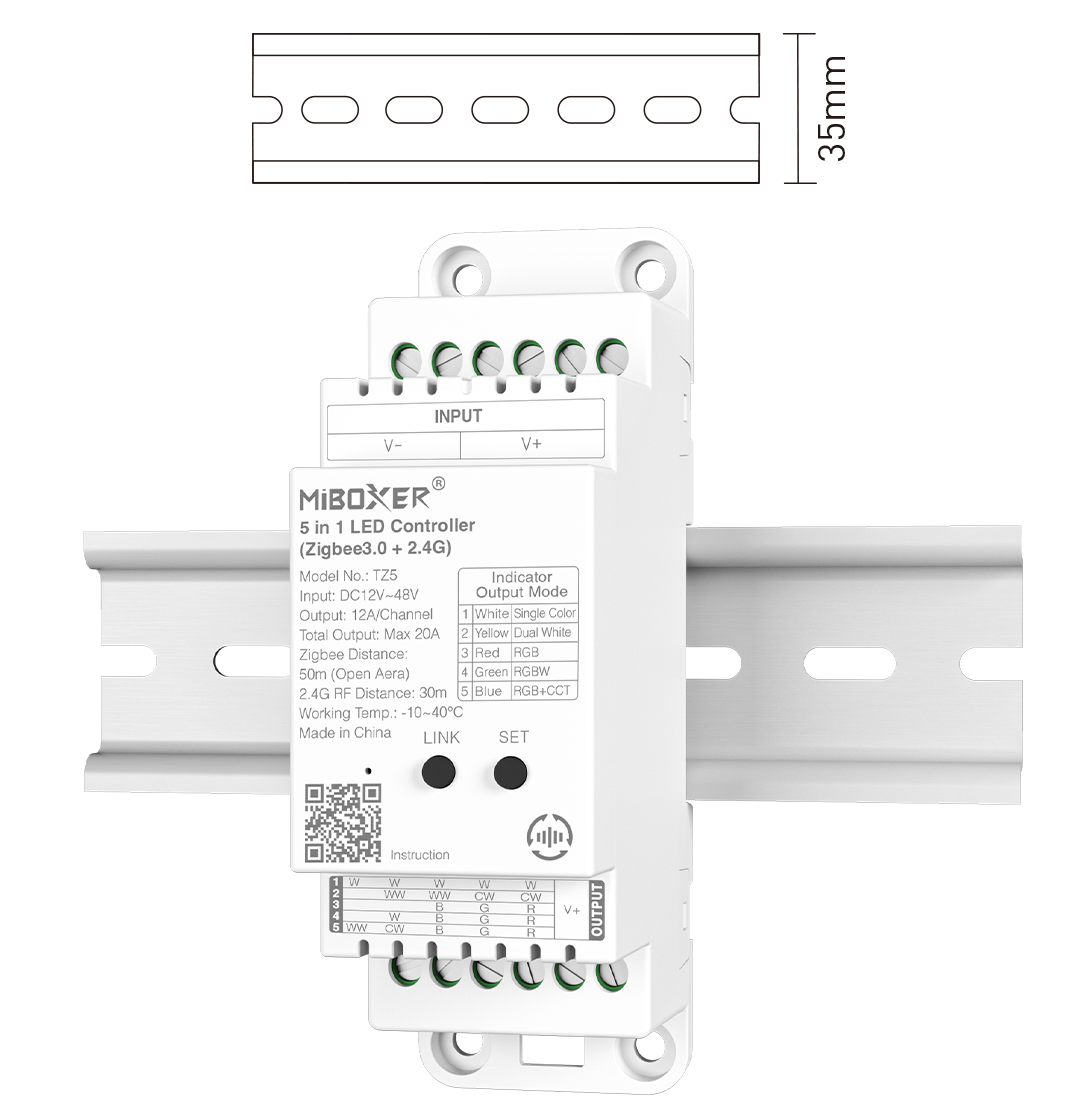

The MiBoxer TZ5 DIN rail Zigbee controller is a professional solution for controlling LED strips in fixed installations such as meter cabinets and control panels. Thanks to mounting on a standard 35mm DIN rail, this controller is ideal for both residential and commercial applications.

This controller supports Zigbee 3.0 and operates within a mesh network, ensuring a stable and reliable wireless connection. In combination with a Zigbee gateway (such as Tuya or Philips Hue), the lighting can easily be controlled via apps, automations, and voice assistants such as Alexa and Google Assistant.

The TZ5 is a 5-in-1 controller, meaning it is suitable for virtually all LED strip types:

Single color (dimmable)
Dual white (CCT)
RGB
RGBW
RGB+CCT

With the press of a button, you can easily switch between these modes, making the controller highly flexible for different projects.

Thanks to support for 2.4GHz RF remote controls, the controller can also be operated without an app. In addition, it features smart functions such as:

Automatic signal transmission (mesh extension)
Synchronization between multiple controllers
Dynamic lighting programs (when using RF)

The controller supports voltages from 12V to 48V DC, making it suitable for both standard and high-power LED installations.

In short: the TZ5 is the ideal choice for installers and professionals looking for a reliable, clean, and future-proof LED control solution.

Downloads:
Manual
