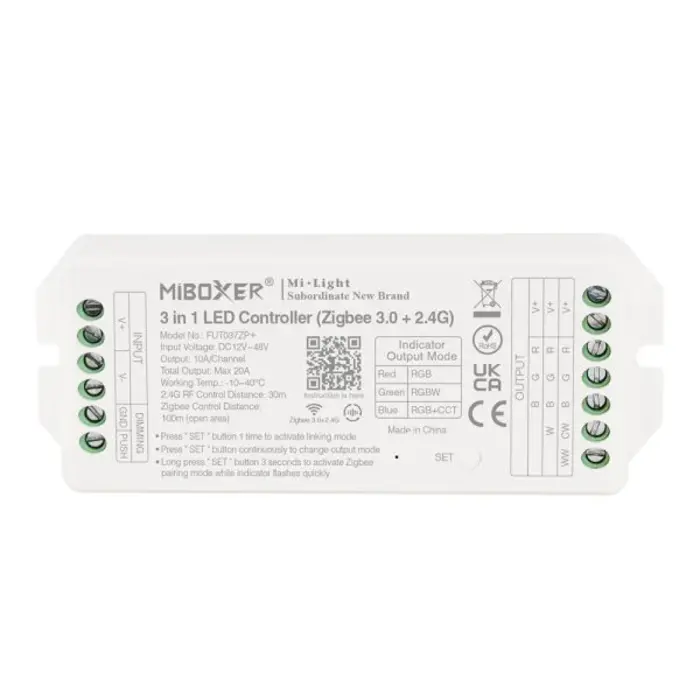

Miboxer 3-in-1 LED Controller Zigbee 20A 480W

Article number: 000268
Availability: In stock
Delivery time: Delivered after July 31st

3-in-1 Miboxer Zigbee controller, suitable for RGB, RGBW or RGBCCT LED strip. Max. 20A (480W at 24V). Works with Milight ZBBOX (Tuya) but also with various Smart Home systems such as Philips Hue, Amazon Echo and Alexa, Ikea Trädfri and many other smart home systems.

This controller in combination with RGB, RGBW or RGBCCT LED Strips are a cheap alternative to more expensive smart home systems. In addition, this system is much more flexible because you can connect any type of 12V or 24V LED strip to it and shorten or combine the LED strips as desired.

Installation is very simple: - Plug a 12 or 24 Volt adapter with DC5.5mm jack plug into the controller. - Screw the wires of the LED strip into the screw contacts of the controller. - Link the controller with your zigbee bridge

Install the controller in the following steps:
- Connect to a suitable 12V or 24VDC power supply.
- Connect LED strip to the output and choose a configuration of RGB, RGBW or RGBCCT.
- Link the controller with your Zigbee Bridge. (For example ZZBOX3)

This controller also supports PUSH dimming.

Specifications:
Housing: White ABS plastic
Voltage: 12 to 24 Volt DC
Output: R, G, B, W, WW. (Common +)
Dimensions: 120x46x23mm
Protection: IP20
Standby consumption: <1W
Maximum current per channel: 6A
Maximum current total: 20A
Maximum power: 240W (12V) / 480W (24V)
Memory: Yes (last used setting when power off is retained)
Operating temperature: -10~40℃
Type: FUT037ZP+
