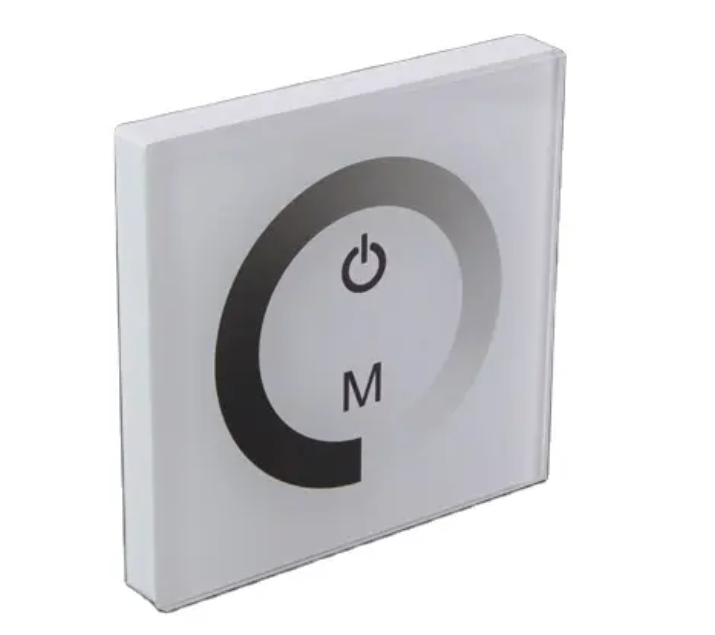

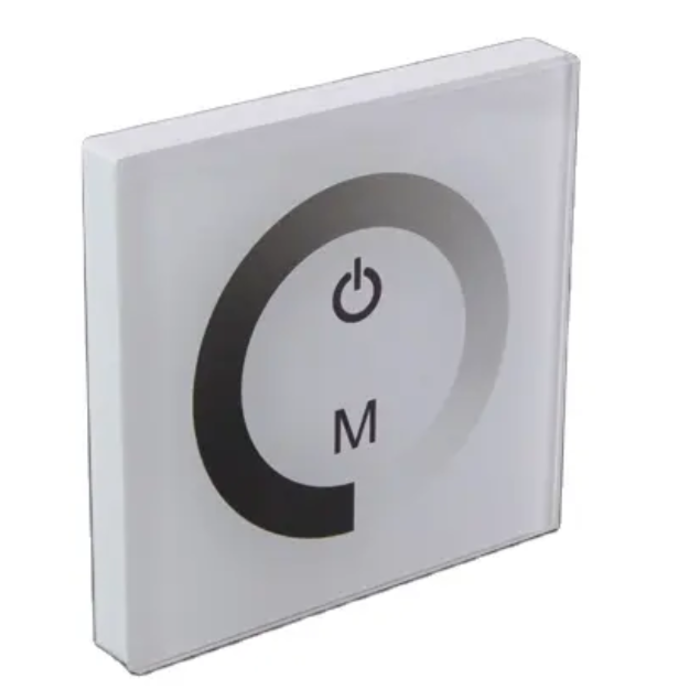

LED Wall dimmer with touch panel

LED Wall-dimmer / on-off switch

With this LED Dimmer you can change the brightness of your LED Lighting just like you would a regular lamp.

Installation
Connect the LED Dimmer between the power supply and the LED Strip.

IMPORTANT: The dimmer is not suitable for use with RGB Strips.


Specifications

●Working temperature: -20-60℃
●Size: Length 86mm x Width 86mm x Depth 36mm
●Min. size of installation hole: H64mm x W58mm
●Supply voltage: 12 / 24 Volt DC
●Output: 1 channel
●Static power consumption:  <1W
●Output current:  Max. 8A
●Power output:  96W

*Memory (remembers last setting when power is shut off): Yes
