Digital RGB 60 LED/m 10 pixel/m Flexible LED Strip - per 50cm

Article number: 000246
Availability: In stock
Delivery time: Delivered after July 31st

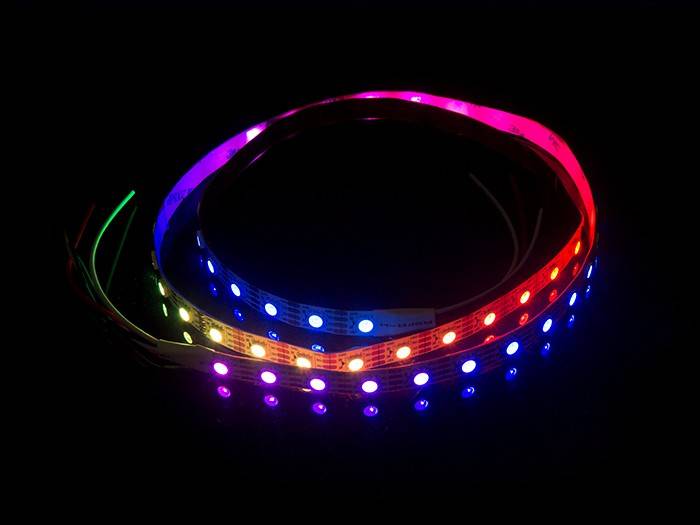

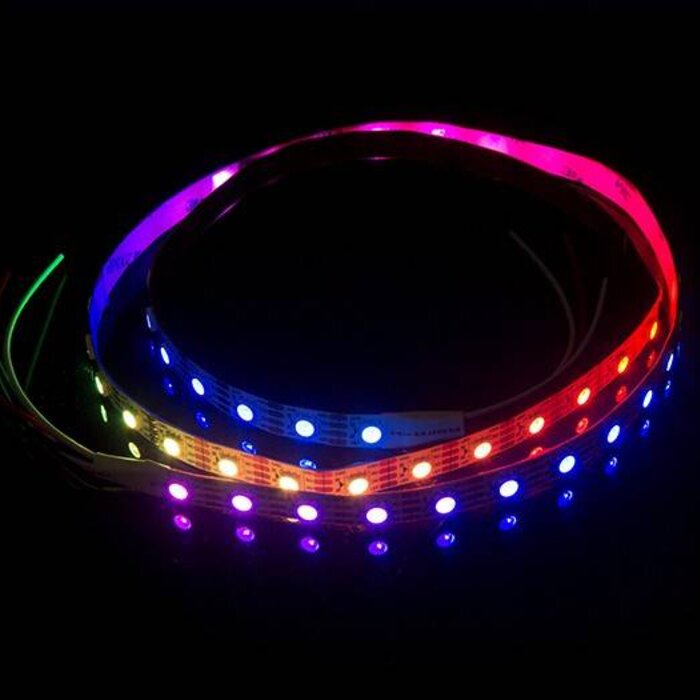

Digital (Magic / Dream Color) LED Strip with addressable LEDs can be used for advanced light effects like rainbow, chasing lights, or custom light programs.

This LED Strip contains 60 ultra-bright LEDs per meter. The LED strip is controlled per 6 LEDs, and therefore contains 10 pixels per meter. Thanks to the higher voltage (24V) and ultra-bright LEDs, this LED strip is suitable for the most demanding projects.

Flexible LED Strip sold per 50cm. The LED Strip is delivered in one piece up to 5 meters. Example: If you put 3x 50cm of LED strip in your shopping cart, you will receive one 1.5 meter LED Strip. However, if you put 16x 50cm of LED Strip in your shopping cart, it is delivered as 1x5m and 1x3m. Etc.
You can solder multiple lengths together to create one long LED Strip.

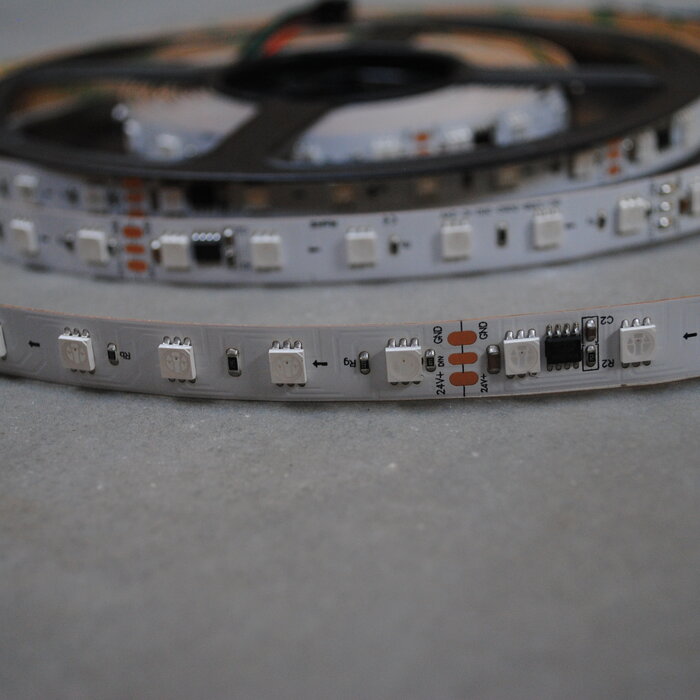

This strip is very easy to install. You can cut the strip after every 6 LED to create any size you need. Moreover, this LED-strip is extremely flexible and very narrow corners can be made with it. The power is supplied through the soldering points which can be found on the strip at each LED.

This LED Strip requires the use of an Digital Controller. These controllers can be found in the category Accessories for LED Strips > Digital LED Strip controllers.

The LED Strip works on 24 Volts, so to connect it to a 110-230V power outlet you will also need a power supply. Please see the category Accessories - Power Supplies for this. The more LED strip you want to connect, the higher the power consumption will be and therefore the bigger the power supply must be. Look below for an indication of which power supply to use with this LED strip:

10cm - 0.8 meters: Power Supply 12 Watt
0.8 meters - 2.5 meters: Power Supply 36 Watt
2.5 meters -4 meters: Power Supply 60 Watt
4 meters - 5.5 meters: Power Supply 84 Watt
5.5 meters - 8 meters: Power Supply 120 Watt
8 meters - 12 meters: Power supply 200 Watt
12 meters - 25 meters: Power Supply 400 Watt

Note: You can also use multiple smaller power supplies and supply the power to the pieces of LED Strip separately.

Remark: To connect the LED strip to a digital controller, you need to solder a number of connections onto the LED Strip. The needed connector wires and installation guide will be included with the digital controller. If you do not know how to solder: no problem, we can do this for you. Add "soldering service for flexible LED Strips" to your shopping cart and we will do all the necessary soldering for you. Look under Accessories -> Service.

Luminous flux: Max. 1000 lumen per meter.
Waterproof: No
LED Color: RGB
IC Type: WS2811
No. of LEDs per meter: 60
No. of ICs / pixels per meter: 10
Voltage: 24V
Amperage: Max. 0.6 A / meter
Power: Max. 14.4 W / meter
Can be cut every 6 LEDs.
Strip width: 10mm (0.39 inches)
Strip height: 2mm (0.08 inches)
