RGB Controller für RGB LED Streifen mit IR Fernbedienung

Artikelnummer:: 000088
Verfügbarkeit: Auf Lager
Lieferzeit: Versand innerhalb von 24 Stunden

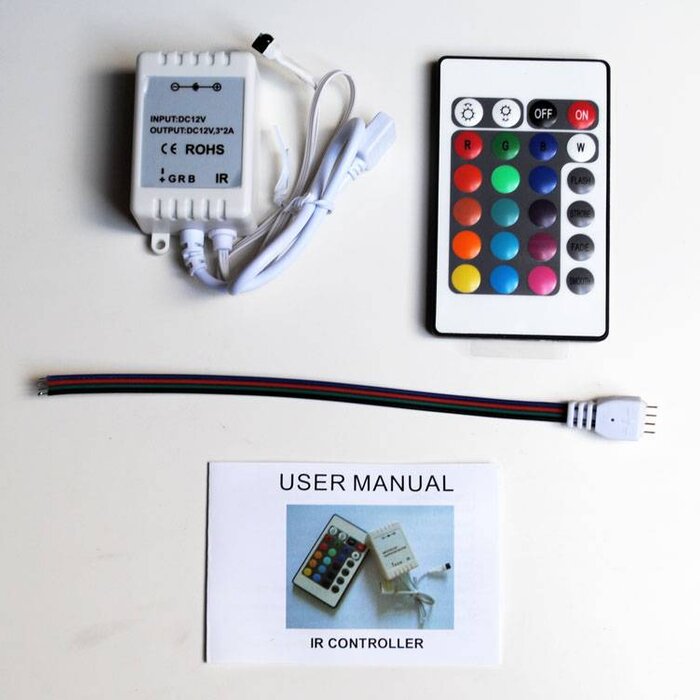

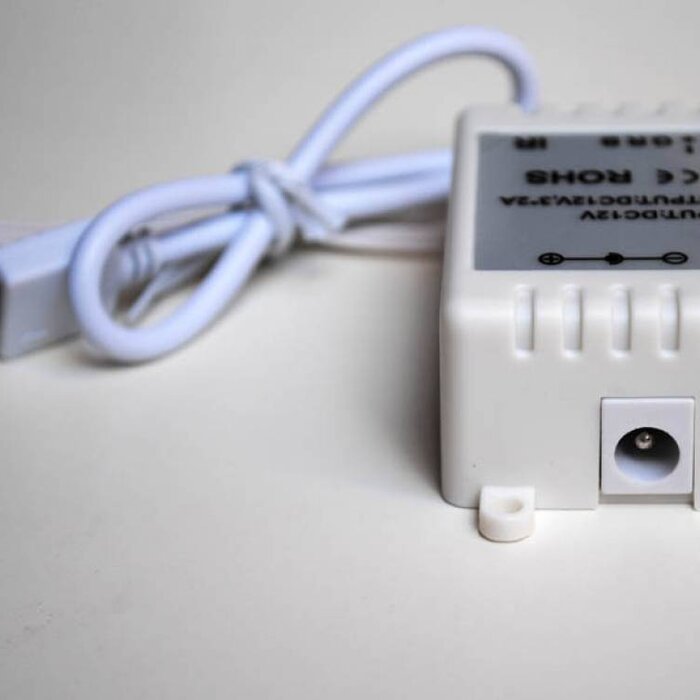

Diese Vorrichtung ist notwendig um unsere flexible RGB LED Streifen anzutreiben. Die vier Leitungen vom RGB Streifen müssen an dieser Vorrichtung angeschlossen werden. Auf der anderen Seite müssen Sie die Leitung am 12V Anschluss des Netzadapters anschließen.

Mit Fernbedienung und Batterien zur Fernbedienung.

Funktionen: Örtlich festgelegte Farbe, automatisch ändernde Farben, Helligkeitseinstellung, Dimmer-Funktion



Spezifikationen:

Einfache Anschlüsse.
In/output Spannung: DC 12V
Speicher (erinnert letzte Einstellung, wenn der Strom abgeschaltet wird): Ja
Ausgang: Drei CMOS Ausgang
Anschließender Modus: Allgemeine Anode
Maximaler Strom: 2A für jede Führung (insgesamt max. 72 Watt)
Maße: 50mm x 35mm x 22mm
Arbeitstemperatur: -20 bis 60 Grad Celsius (- 4 bis 140 Grade Fahrenheit)

Chris Lenaerts 02-08-2023 10:58

It came with a dead battery wich made it look like a faulty product at first. After changing the battery to one of my own it worked. So in fact i paid for a dead battery wich sucks

Christopher Gull 21-01-2013 01:44

Really good RGB controller and remote for its price! However, beware that settings are quite limited, such as the timing for colour change, which I think is too fast even at slowest speed. I tested how long it would take for one primary colour to change to another, and it was under 30 seconds. I prefer about 2 minutes between colour changes. Also, the automatic colour changing isn't stepless, which causes flickering while some colours are changing. The good points are that the controller "box" is very small, that it has a wire that lets you mount the IR receiver further away from the controller (it allows you to mount the box out of sight, and only have the receiver visible), and that the remote control is flat and small, which makes it easy to make a small homemade holder on the wall where you can put the remote control (remote control also works well even when you don't point it at the receiver).

3.5 Sterne, basierend auf 2 Bewertungen
